Threaded fitting – collector adapter

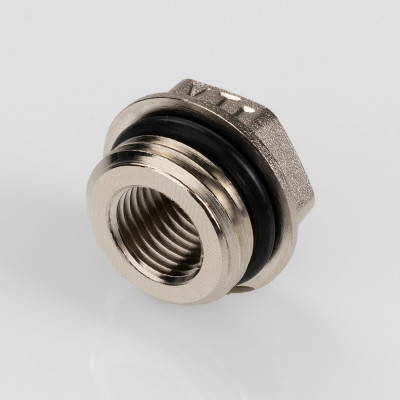

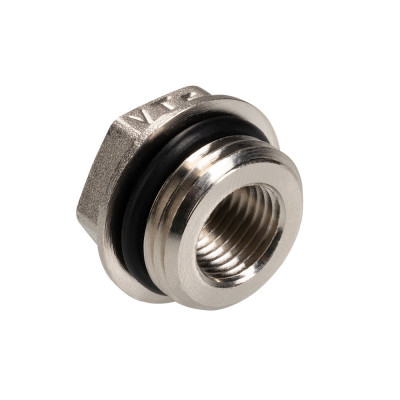

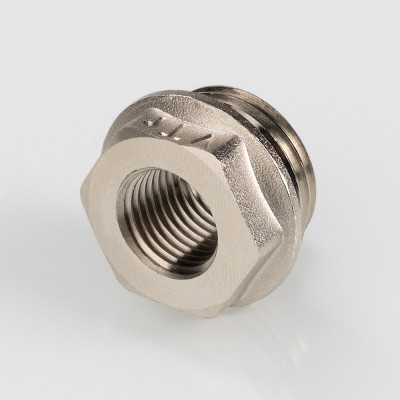

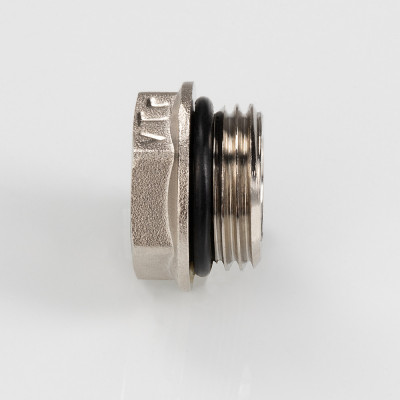

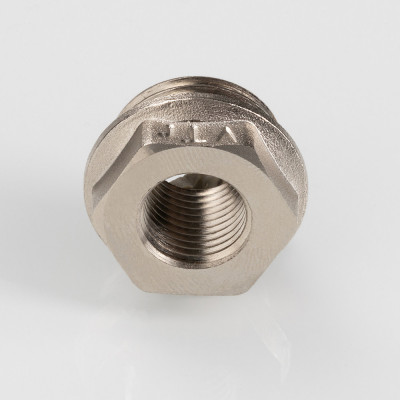

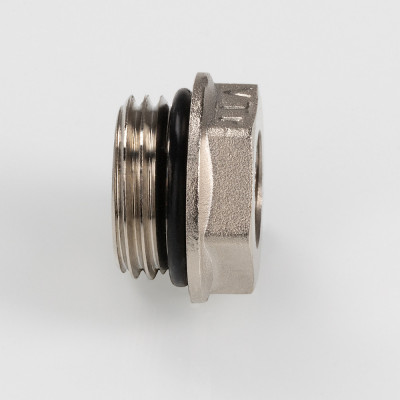

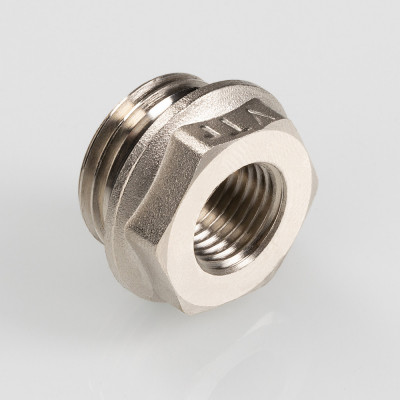

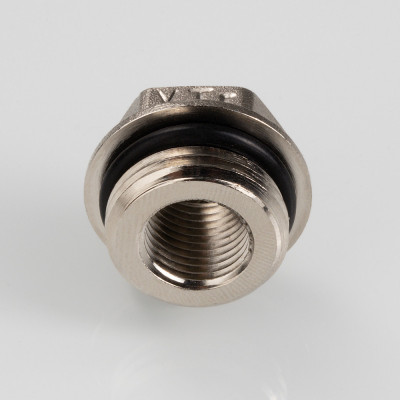

(VTr.585.N) The collector adapter is designed for the possibility of connection to a stainless steel collector (VTc.505.SS and VTc.510.SS) of a 1/4" male thread pressure gauge (for example: VT.TM50.D) or an impulse tube (VT.044.I.1000 or VT.AEQF.01.0).
The adapter can be used in hot and cold water supply systems and water heating as well as on pipelines transporting liquids not aggressive to the product materials at the operating medium temperature up to 110 °C and the pressure up to 1.6 MPa.
Dimensione/quantitativo | Prezzo unitario | |
---|---|---|
VTr.585.N.0402 | 1/2"x1/4" | 62 ₽ |
VTr.585.N.0502 | 3/4"x1/4" | 99 ₽ |
* Vengono indicati i prezzi al dettaglio raccomandati dal produttore (in rubli). |
