ADDITION IN THE RANGE OF MANIFOLD CONTROLLERS

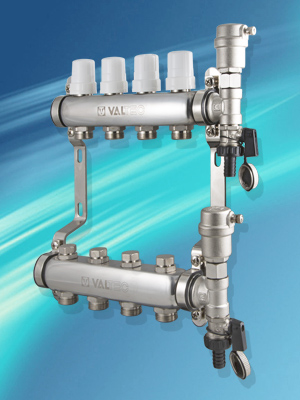

The stainless steel VTc.588 manifold assembled kits are now available. These kits are meant to be used to distribute heat carrier in the heated floor nodes or heating radiators.
The VTc-588 manifold kits are fitted with the following:
- Thermostatic valves on the return line;
- Regulatory micrometric valves on supply line;
- Connecting nipples of “Euroconus” standard;
- Automatic vents with shut-off valves;
- Drainage taps;
- Installation fittings and gasket fitted plugs.
Number of outlets – from 3 to 10; operational pressure – 9 bars; maximum working temperature – 90 OC. The collector is made of stainless steel type AISI 301, whereas the fittings, thermal valve parts, vent casings are made of hot-pressed brass type CW617N, gaskets and spool-type valve lining is made of EPDM 70Sh.
